Right height for rear derailleur?

[Bikescanner]

Hi

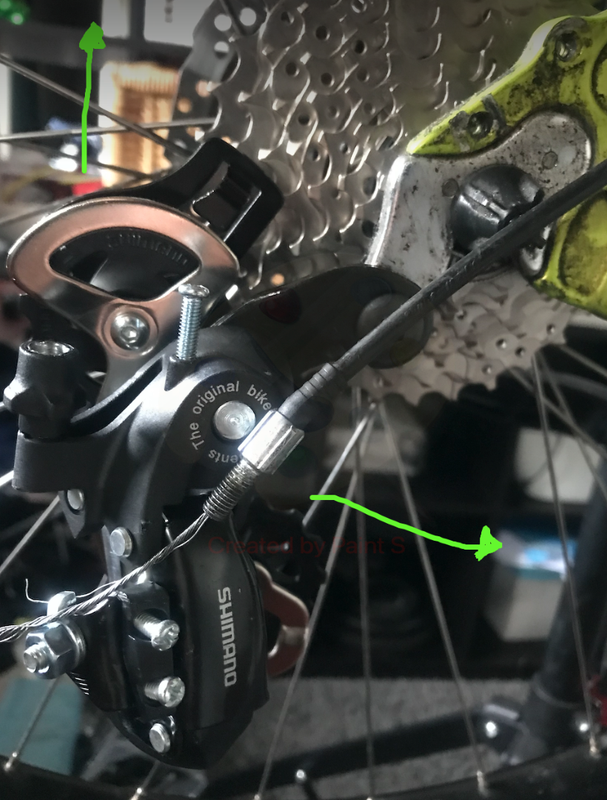

I am putting a new rear derailleur on my bike. Is this approximately the right height for it?

Or should it be lower or perhaps higher?

The chain is not yet on the bike so I wold like some opinions on the positioning.

See video and picture:

VEED - vid

Make stunning videos with a single click. Cut, trim, crop, add subtitles and more. Online, no account needed. Try it now, free. VEED

www.veed.io

https://i.postimg.cc/K86nWGQr/pic.png



[Bikescanner]

Now it looks like this. I am installing new housing. Does this look like the right length for the housing cable? Also, does it look like I have forgotten something? Or is this the right way to install it?

IMG_1325.MOV - VEED - Online Video Editor - Video Editing Made Simple

www.veed.io



[JayKosta]

The housing cable looks a little long - the 'loop' could be smaller , the main corner is to avoid having the cable loop somehow getting tangled in the spokes.
I suggest you look at how the cable is attached on other similar bikes.
The main concern is having the shifter work to move the chain onto all of the sprockets.



[Bikescanner]

The housing cable looks a little long - the 'loop' could be smaller , the main corner is to avoid having the cable loop somehow getting tangled in the spokes.
I suggest you look at how the cable is attached on other similar bikes.
The main concern is having the shifter work to move the chain onto all of the sprockets.

I have fixed it. Now I am adjusting the wheel to spin straight.

Anyone knows if this is straight eough? Or should it be even straighter?

I had to replace some spokes since the old wheel had broken spokes.

And this part is quite difficult.

VEED - Create, Edit & Share Videos Online for free

Veed is a simple but powerful video editor, try our free video editor to, resize video, trim video add loads more!

www.veed.io



[Bikescanner]

It would also be helpful with some input on the rear shifting which I am also adjusting right now.

I think that all of the cogs sound okay now(?) except for the lightest one closest to the wheel. This one sounds really bad. But I don't understand why.

Because I have tried releasing the L-screw quite a lot and it does not eliminate the sound.

IMG_1333 - VEED - Online Video Editor - Video Editing Made Simple

www.veed.io



[JayKosta]

The noise with the inner cog might be caused by the amount that it (and the chain) are worn.
Look carefully at the shape of the teeth on the cogs to see if there are obvious differences.
Also, you might have to adjust where the clamp holds the wire - so the wire can be pulled enough to shift into all the cogs.



[valenzuela112]

Begin by visually inspecting the derailleur hanger. Your adjustments will not work if it is clearly bent. To resolve this issue, watch our hanger alignment video. If your bike has multiple front chainrings, set the front derailleur to the largest chainring and the rear derailleur to the smallest cog. Even if you're already in the smallest cog, keep clicking the rear shifter to ensure there are no more clicks in the mechanism. This ensures that the rear shifter is fully depressed.
